Hydraulic Press

pressure 100 t︱distance between columns - mm︱stroke 350 mm︱table size 1150 x 700 mm︱total power requirement 11 kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱

---

pressure 2400 t︱distance between columns 2100 mm︱stroke 1100 mm︱total power requirement kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱

---

Stocknumber 2310027 Type of machine Hydraulic press Make Fjellman Type GFK 2400 ton Additional information Table 6200 x 1100 mm Stroke 1100 mm Daylight 1100 mm Distance between the columns 2150 mm Total powe 110 Kw

pressure 80 t︱stroke 320 mm︱throat 290 mm︱feed down 28 mm/sec︱table-size 500 x 500 mm︱work height max. 850 mm︱depth 1200 mm︱width 1000 mm︱height 2200 mm︱pressure capacity max. 320 bar︱total power requirement 4 kW︱weight of the machine ca. 1700 t︱

---

pressure 50 t︱stroke 250 mm︱throat 265 mm︱table: 700 x 450 ︱ram surface 550 x 300 mm︱total power requirement 4 kW︱weight of the machine ca. 1,7 t︱

---

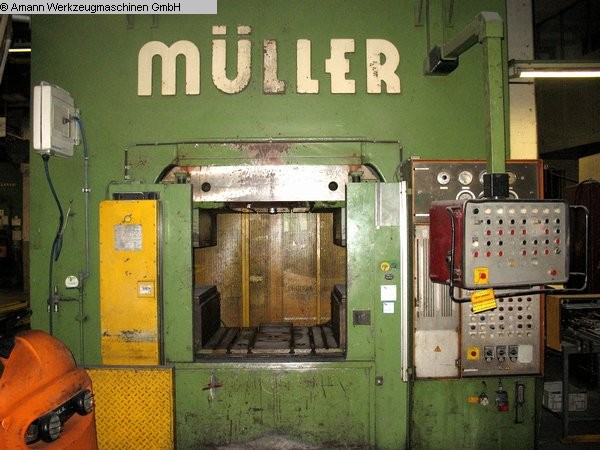

pressure 400 t︱distance between columns 1100 mm︱stroke 170 mm︱dayligth 575 mm︱ram head width 400 mm︱total power requirement 11 kW︱weight of the machine ca. 11 t︱

---

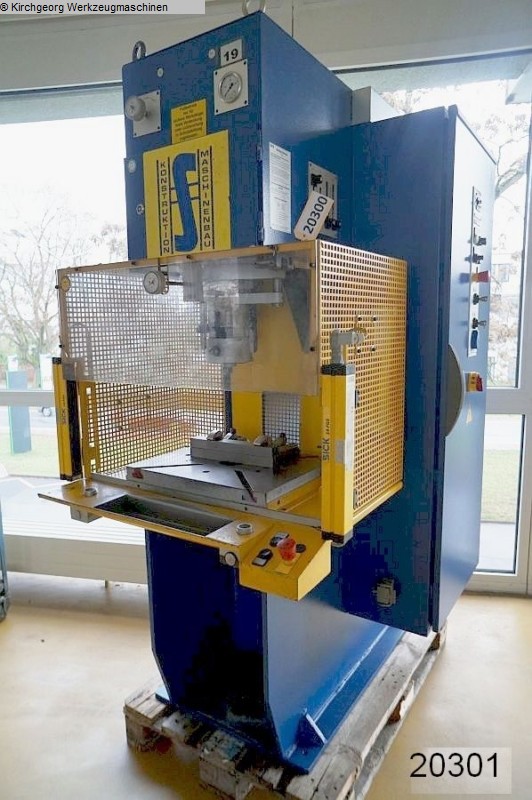

pressure 25 t︱throat 270 mm︱stroke 100 mm︱dayligth 300 mm︱table-size 500 x 400 mm︱hole in the table 80 mm︱ram hole 40 mm︱oil volume 125 l︱voltage 400 V︱total power requirement 4,0 kW︱weight of the machine ca. 1,2 t︱dimensions of the machine ca. 1,00 x 1,35 x 2,00 m︱two hand operation ︱

---

- Factory No.: 4687 - Machine ON: 7.034 h - SICK protection device - two-hand operation - foot switch

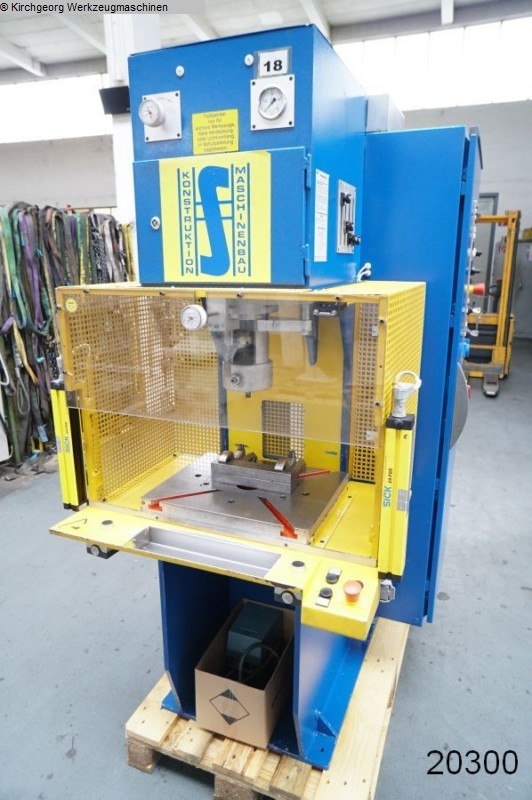

pressure 25 t︱throat 270 mm︱stroke 100 mm︱dayligth 300 mm︱table-size 500 x 400 mm︱hole in the table Ø 80 mm︱ram hole Ø 40 mm︱oil volume 125 l︱voltage 400 V︱total power requirement 4,0 kW︱weight of the machine ca. 1,2 t︱dimensions of the machine ca. 1,00 x 1,35 x 2,00 m︱two hand operation ︱

---

- Factory No.: 4688 - Machine ON: 7.411 h - SICK protection device - two-hand operation - foot switch

pressure 25 t︱total power requirement 5,5 kW︱weight of the machine ca. 5 t︱

---

pressure - ︱distance between columns - ︱stroke - ︱

---

4000 kN︱stroke length max. 1000 mm︱Control NC ︱total power requirement 55 kW︱weight of the machine ca. 22 t︱

---

particularities - The press is fully NC-controlled - High travel speed of the forming punch (up to 2000 mm / s) Main area of ??application - Thixo forging of steel Technical specifications Press RAM: Press force (kN): 4000kN Return force: 325 kN Stroke length (mm): 1000mm Closing speed (mm / s): 400mm / s Maximum pressing speed (mm / s) up to 1100 kN: 45 Maximum pressing speed (mm / s) up to 2000 kN: 25 Maximum pressing speed (mm / s) at 4000 kN .: 12 Maximum return speed (mm / s: 230 Electric motor (rpm at 50 Hz): 1450 Pump capacity (L / min): 360 Electric motor nom / int (kW): 55 (66) Maximum system pressure KPa: 32500 Stamp the cylinder in the press table and press the ram: Force (kN): 500kN Stroke length (mm): 350mm Ejector cylinder: Force (kN): 50kN Stroke length (mm): 50mm Dimensions (mm): Press table left-right: 1300mm Press table front-back: 1000mm Draw ram left-right: 1300mm Pull ram front-rear: 800mm Max open press bed - press ram: 1150mm Min. Closing height press bed - press ram: 300mm Overall dimensions (mm): Total width left-right: 4140mm Total depth front - rear: 2670mm Total height of the press: 5000mm Min height floor - ceiling: 6000mm Height to press bed: 1050mm Frame depth front - rear: 1000mm Frame width left - right: 2080mm Height to the pump unit from the ground: 2670mm Min. Height from floor to ceiling: 6000mm Total weight (kg): approx. 22000kg Pump motor: Hydraulic pump capacity: 360 l / min Max working pressure: 32.5 mPa Motor power: 55kW Circulating power: 1450 rpm (50Hz) Recommended foundation dimensions: left-right (mm): 1300mm front - back (mm): 1900mm Depth (mm): 1800mm General: Oil reservoir (liters): 2000 Layout no .: P1034

pressure 40 t︱total power requirement 7,5 kW︱weight of the machine ca. 5,2 t︱

---

pressure 40 t︱total power requirement 7,5 kW︱weight of the machine ca. 5 t︱

---

pressure - ︱distance between columns - ︱stroke - ︱Control ︱

---

pressure 63 t︱distance between columns mm︱stroke 200 mm︱-------------------------------------------------- ︱PRESS DESIGN ︱- drive system: hydraulic ︱PRESS FORCES ︱- total force (nominal) 63 to︱SLIDE ︱- table surface (left-right) 700 mm︱- table surface (front-back) 500 mm︱- stroke 200 mm︱SLIDE (HYDR. PRESS) ︱- approximation velocity max. 400 mm/s︱- working velocity min. 25 mm/s︱- working velocity max. 65 mm/s︱- return velocity max. 400 mm/s︱- return force 10 to︱ELECTRICAL SPECIFICATIONS ︱- total power consumption 22 kW︱

---

pressure 160 kN︱oil pressure 240 bar︱Number of working hours 250 h︱total power requirement 11 kW︱weight of the machine ca. 3.100 kg︱dimensions of the machine ca. m︱

---

pressure 60 t︱distance between columns mm︱stroke 355 mm︱total power requirement kW︱weight of the machine ca. t︱dimensions of the machine ca. m︱

---

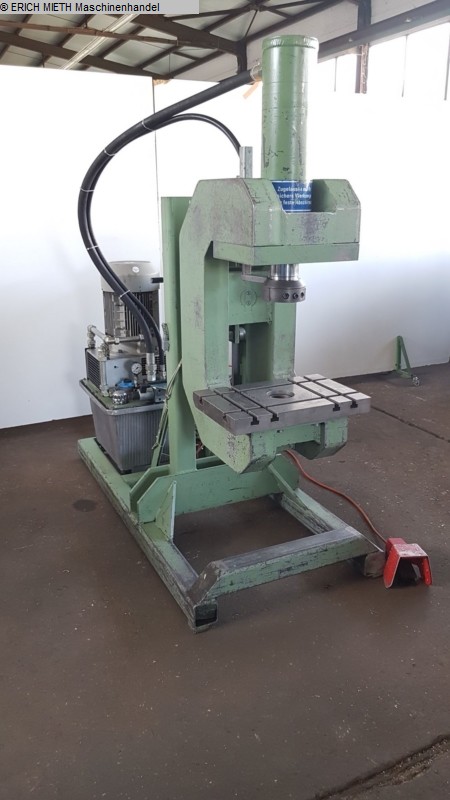

pressure 16 t︱distance between columns 0 mm︱stroke 450 mm︱total power requirement 7,5 kW︱weight of the machine ca. 3000 kg︱dimensions of the machine ca. m︱

---

pressure 10 t︱distance between columns 0 mm︱stroke 450 mm︱total power requirement 5,5 kW︱weight of the machine ca. 2200 kg︱dimensions of the machine ca. m︱

---

pressure 160 t︱distance between columns 400 mm︱stroke 400 mm︱total power requirement 5 kW︱weight of the machine ca. 2 t︱dimensions of the machine ca. 2 x 2 x 2 m︱

---

pressure 10 t︱distance between columns 0 mm︱stroke 450 mm︱total power requirement 5,5 kW︱weight of the machine ca. 2200 kg︱dimensions of the machine ca. m︱

---

pressure 6,3 t︱distance between columns 0 mm︱stroke 230 mm︱total power requirement 11 kW︱weight of the machine ca. 2.200 kg︱dimensions of the machine ca. m︱

---

ram capacity 2000 t︱return capacity 150 t︱table-size 1015 x 1050 mm︱ram head dimension 975 x 1050 mm︱dist. between pillars (left to right) 975 mm︱dayligth 1000 mm︱distance table/ram 600 - 1000 mm︱ram stroke 400 mm︱table height over floor 800 mm︱height over floor 3650 mm︱Table ejector 63 KN︱Ram ejector 650 KN︱Table ejector stroke 100 mm︱Ram ejector stroke 100 mm︱Lenght of ram slide guiding 1400 mm︱ ︱Idle speed downward 235 mm/s︱working feed max. 20 mm/sec︱Working speed at 10000 KN 14 mm/s︱Working speed at 20000 KN 5 mm/s︱

---

sizing press with oil-hydraulic drive, hydr. and electrical control depending on UVV, light barrier (Comp. Sick), ejector in table and pusher!

pressure 100 t︱distance between columns 800 mm︱stroke 500 mm︱total power requirement 17 kW︱weight of the machine ca. 5000 kg︱dimensions of the machine ca. 2100 x 1200 x 3100 mm︱

---

WMW - ZEULENRODA Hydraulic Single Column C-Form Press Model PYE 100 S 1 ( S = Fast Speed Version) Year approx.1985 # 023-010/21 _______________________________________________ Pressure of upper piston 100 to Stroke of upper piston approx. 500 mm Throat 360 mm Mounting height beween table a.piston up max.. 800 mm Diameter of Piston 250 mm Bore in piston x depth 50 x 85 mm Table size 700 x 900 mm Table height above floor 700 mm Passage gap in table 115 x 650 mm Ram area 500 x 440 mm Ram working speeds; up/down 200 mm/sec. Total electrical load approx.. 17 kW - 380 V – 50 cycles Weight approx. 5.000 kg Outside dimension 2100 x1200x3100 mm Accessories/Special Features: This Press has been partially reconditioned and modernized in 2004 with a new electrical switch cabinet and with a PILZ Safety Control unit model PSS 3074 in conjunction with a new Hydraulic Safety bloc make RINGRAUM / DENISON Hydraulics. Presumable it is fitted to the Safety Standards. • The Piston stroke is controlled by a 3 fold rail with adjustable stops for up/down and for the working stroke with a presettable timer for the pressing time. Timer relais is adjustable for 0 – 10 seconds. • 4 Position Switch for selecting off/release by foot switch or two-button hand release or for set-up process. • Various switches for short-stroke operations, for safety control off/on, for work with or without the pressing timer • Pressure can be setted steplessly on a valve and monitored by a pressuremeter. • Mobile SIEMENS two – button release unit with distance barriers to the working area. • Connecting plug for the foot release. Condition : good to very good – can be soon inspected under power Delivery : ex stock – as inspected Payment : net – after completion of contract

pressure 20 t︱distance between columns 0 mm︱stroke 450 mm︱total power requirement 7,5 kW︱weight of the machine ca. 3000 kg︱dimensions of the machine ca. m︱

---
