Machining Center - Horizontal

x-travel 1000 mm︱y-travel 900 mm︱z-travel 1000 mm︱control OSP P 300 MA-e ︱spindle turning speed range 50 - 6000 U/min︱tool taper BT 50 ︱spindle motor 30 / 22 kW︱toolpiece magazine: chain magazine 60 Stück︱table-size 630 x 630 mm︱table rotation 360 x 1 °︱table load 1,2 t︱dimension of workpiece max: 1000 x 1000 mm︱total power requirement 90 kW︱weight of the machine ca. 25 t︱dimensions of the machine ca. 6,5 x 3,5 x 3,25 m︱

---

- CNC-ontrol OSP P 300 MA-e - 2-fold Pallet (630x630mm) - Chip Conveyor - ATC 60-fold (BT 50) - Exhauster - Coolant (through Spindle) with paperband filter - Tool Breakage detection (Renishaw TS 34) - Auto Zero Offset, auto Gauging (Renishaw OMP 60) - Spindle Oil Cooler - Oil Skimmer

x-travel 1.000 mm︱y-travel 910 mm︱z-travel 835 mm︱Control Sinumerik 840 DE ︱total power requirement 60 kW︱weight of the machine ca. 16,1 t︱dimensions of the machine ca. 5,935 x 5,3 x 3,6 m︱

---

Machining Center - Horizontal - HECKERT - Type: CWK 630 - YOM: 2017 The machine can be inspected by appointment under working condition. Condition: Very good used, fully functional. Operating hours (December 21, 2020): - Operating hours total: 22.528 h - Total automatic operation: 6.952 h - Switch-on time: 10 h - Part program runtime: 0 h TECHNICAL SPECIFICATIONS - Control: Siemens Sinumerik 840DE powerline Travels: - X-axis (Table length adjustment): 1.000 mm - Y-axis (Support vertical adjustment): 910 mm - Z-axis (Table length adjustment): 835 mm - 2 pallets, clamping surface: 630 x 630 mm - NC-Rotary table - Automatic pallet change with rotatable clamping station - Working spindle: 6.000 rpm - Tool holder: HSK-A 100 - Tool chain magazine: 60 positions There is no guarantee for correctness and completeness of the technical details and accessories. Detailed technical data sheet and information on equipment available on request.

x-travel 800 mm︱y-travel 800 mm︱z-travel 800 mm︱control Mazatrol SmoothG ︱numbers of pallets 2 ︱size of pallet 500 x 500 mm︱max. workpiece height 1000 mm︱max. workpiecediameter 900 mm︱workpiece weight 1000 kg︱tool taper CAT 50 ︱Tool changer 120 pos.︱b-axis (table) 360x 0,001 °︱power capacity - milling spindle 30 kW︱turning speed range - milling 10000 U/min︱weight of the machine ca. 15 t︱dimensions of the machine ca. - m︱

---

4- Axis Machine equipped with: - CNC Control MAZATROL SmoothG - ATC 120-fold (Cat 50) - Chip Conveyor - HP Coolant with internal Spindle Cooling 70 BAR - 360x0,001° positions indexing table - pallet changer Rotopallet (2 pallets) - Spindle cooling unit - Blowout through the spindle - Coolant and chip protection through fully enclosed working space - Automatic separating door open / close - Workspace door lock - workspace lighting Work Hours ca 4600h

x-travel 730 mm︱y-travel 730 mm︱z-travel 880 mm︱Control Fanuc 31i-B ︱weight of the machine ca. 11,5 t︱dimensions of the machine ca. 5.450 x 2.680 x 2.880 mm︱

---

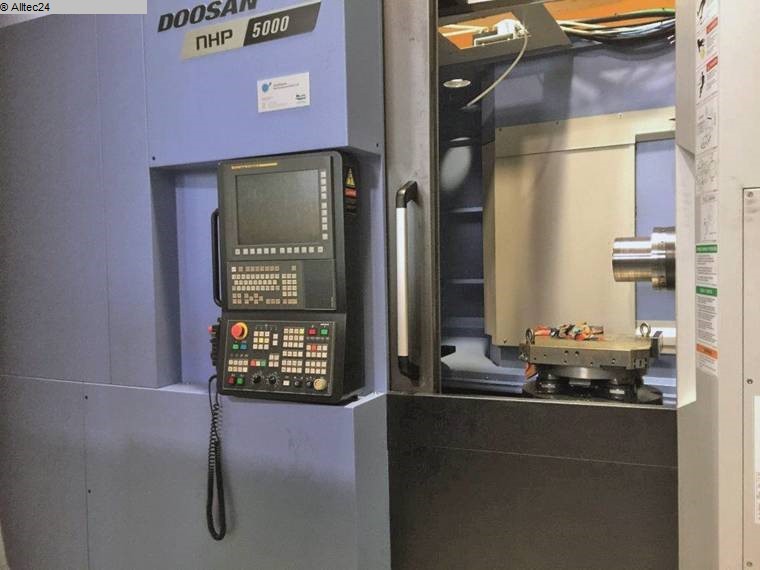

CNC machining center - horizontal DOOSAN HP 5000 15 "color screen Pallet size: 500 x 500 mm Max. Workpiece diameter: 800 mm Tool changer: 60-fold Tool change data: - T-T-T less than 8 kg: 0.9 sec - more than 8 kg: 1.3 sec - C-T-C less than 8 kg: 2.8 sec - more than 8 kg: 3.2 sec max: spindle speed: 15,000 rpm Tool: HSK63A domestic equipments -------------------- minute Indexing angle of the pallet 0,001 ° Chip conveyor hinged band DOOSAN Tool Monitoring System - Tool Monitoring Confirmation of pallet clamping via air-conditioning control internal coolant supply approx. 63.5 bar (50 Hz), 3.7 kW with paper roll filter Preparation for hydraulic tensioner 8 pairs of pipes Hydraulic unit 210 bar Rotary union

x-travel 2800 mm︱y-travel 1600 mm︱z-travel 1850 mm︱control Mazatrol Matrix Nexus 2 ︱max. workpiece diameter dia 3000 x 2000 mm︱max. table load 6000 kg︱size of pallet 1250 x 1600 mm︱B - Axis 0,0001 °︱turning speeds 8000 U/min︱drive capacity - spindle motor 37 kW︱max. torque on the spindle 1218 Nm︱no. of tools in magazin 120 ︱tool adaptor HSK A-100 ︱Rapid Travel X / Y / Z-Achse 43 m/min︱total power requirement kVA︱weight of the machine ca. 58 t︱dimensions of the machine ca. 7,1 x 10,9 m︱

---

equipped with: - CNC control Mazatrol Matrix Nexus 2 - B-axis (0.0001°) - ATC 120-fold (HSK A-100) - Chip Conveyor - 2-fold Pallet Changer - High Pressure cooling through Unit (995PSI) - Chip Conveyor - Renishaw NC4 Laser Tool Measur. - Thread Cutting Function -Power-On Time: 7640h, Automatic Cutting: 921h

x-travel 1.400 mm︱y-travel 1.200 mm︱z-travel 1.350 mm︱control M 730 UM Mapps CELOS︱Main spindle: ︱Speed Mainspindle max. 15.000 min/-1︱power capacity - main spindel 30 / 25 kW︱tool taper MAS-BT 50 ︱diameter front bear 100 mm︱distance spindle center to table 100 - 1.300 mm︱distance spindle nose and table 100 - 1.450 mm︱pallet changer: ︱numbers of pallets 2 ︱size of pallet 800 x 800 mm︱max. workpiece weight 2.200 kg︱max. workpiece diameter on pallets 1.450 mm︱max. workpiece height 1.450 mm︱b-axis 0,001 °︱Indexing 3,2 / 3,7 - (90/180) °︱change time 16,0 sec︱

---

CNC - MachiningCenter Horizontal DMG MORI - NHX 8000 - 2-pos. palletchanger - 4 Axis - Operating-Hours: Power-On: ca. 6.400h / Spindle-hrs.: ca. 4.000h

x-travel 850 mm︱y-travel 700 mm︱z-travel 750 mm︱Control Fanuc 31i-B ︱weight of the machine ca. 15 t︱dimensions of the machine ca. 5.315 x 2.795 x 2.993 mm︱

---

CNC machining center - horizontal DOOSAN HP 5000 15 "color screen Pallet size: 500 x 500 mm Max. Workpiece diameter: 800 mm max. workpiece height: 930 mm Tool changer: 80 times max: spindle speed: 14,000 rpm Tool holder: BIG PLUS BT 40 domestic equipments ------------------- oil skimmers B axis, smallest indexing 0.001 ° DOOSAN Tool Monitoring - Tool Monitoring Cooling by spindle approx. 29 bar 3.7 kW with cyclone filter Workpiece reference point: pallet center Machine room flushing in the upper warehouse automatic tool measurement TS27R Renishaw

x-travel 650 mm︱y-travel 650 mm︱z-travel 680 mm︱spindle motor 24/31 kW︱Control Siemens 840 D ︱Number of working hours 37124 h︱spindle hours 15315 h︱main spindle: ︱Number of boring spindles 1 St.︱turning speed range - main spindle 50 - 10000 min/-1︱Drive power - main spindle 24/37 kW︱max. torque 230/350 Nm︱spindle bearing diameter 70 mm︱no. of tables 2 ︱round table 400 x 500 mm︱tool magazin: ︱tool taper HSK 63 ︱number of tool places 60 Pos.︱max. tool diameter 80/160 mm︱max. tool length 350 mm︱

---

The machine can be viewed under power by appointment and is in our estimation in a very good condition. Equipment: - Power package - Clamping hydraulics 6 channels - IKZ up to 80 bar - Visa port - Renishaw OMP 60 probe - Tool breakage control - autom. Doors - pallet changer - KNOLL KF 400/1750 belt filter system - KNOLL 450 K-1 chip chain conveyor *** Changes and errors in the technical data and information Subject to prior sale! ***

x-travel 630 mm︱y-travel 550 mm︱z-travel 550 mm︱control Professional L Makino︱Main spindle: ︱turning speed range - main spindle 50 - 16.000 min/-1︱power capacity - main spindel 15 / 11 kW︱max. Torque 29 Nm︱tool taper HSK-A63 ︱threading 5.000 ︱work table: ︱table diameter 400 mm︱max. table load 400 kg︱max. workpiecediameter 710 mm︱max. workpiece height 580 mm︱Tool-Presetter: ︱number of toolpositions 30 pos.︱tool taper HSK-A63 ︱max. tool diameter 100 / (125) mm︱max. tool length 310 mm︱

---

CNC-MachiningCenter Horizontal MAKINO - J 3-5 - 5 Axis - A/B Axis Tsudakoma RTT-437 AA - young, good-condition Machine - few operating-hours

x-travel 730 mm︱y-travel 730 mm︱z-travel 880 mm︱control 840 D sl Siemens︱Main spindle: ︱max. spindle speed 12.000 min/-1︱power capacity - milling spindle 30 kW︱max. Torque 102 Nm︱tool taper SK 40 ︱distance spindle center to table 80 - 810 mm︱distance Spindlenose and center of table 70 - 950 mm︱pallet changer: ︱numbers of pallets 2 ︱size of pallet 500 x 500 mm︱max. workpiece weight 500 kg︱max. workpiecediameter 800 mm︱max. workpiece height 1.100 mm︱change time of pallets 9,5 sec︱Indexing-time 1,3 sec︱B-axis (table) 360 x 1 °︱

---

CNC - MachiningCenter Horizontal DMG MORI - NHX 5000 - 2 pos. palletchanger - ca. 8.500h Spindle-hrs. - WITHOUT tools

x-travel 1350 mm︱y-travel 970 mm︱z-travel 1300 mm︱Control Sinumerik 840D ︱feeds x/y/z -stepless 1 - 60000 mm/min︱rapid travel x/y/z 60 m/min︱size of pallet 800 x 1.000 mm︱HORIZONTAL-/VERTICAL MILLING SUPPORT: ︱working spindle ︱tool taper HSK-A100 ︱diameter in front bearing 110 mm︱main drive capacity (60 % ED) 30 kW︱main drive capacity (100% ED) 28 kW︱main spindle torque (60% ED) 1080 Nm︱main spindle torque (100% ED) 820 Nm︱working spindle speed range 20 - 6000 U/min︱weight of the machine ca. 29,5 t︱

---

The machine is a horizontal/vertical CNC machining centre with HV-head. Until 2014 it was in the test room. Equipment / Accessories: - clamping hydraulics 30-240 bar, set-up station/work area: 6/6 hydraulics - for hydraulic clamping devices with 6 hydraulic connections as well as a pneumatic support control. - tower magazine with 180 storage places - in 3 towers, tool dimensions: - max. diameter (with free neighboring spaces) 250 mm - max.diameter (with occupied neighboring spaces) 110 mm - max. projection length 450 mm - max. total weight of all tools per tower 600 kg - tool change only in horizontal work spindle position - coolant unit of spindle with temperature stabilization - coolant aggregate fleece gravity filter - process lubrication through the center of the spindle in 7 stages upto max. 50 bar, switchable via M-command - 1350 l volume - link belt chip conveyor - splash shower - coolant quantity approx. 180 - 200 l/min - Visiport electrical - rotating window in the door of the work area at the main operation point - optical measuring probe RENISHAW OMP60 - use of the probe on the control side - measuring probe with transmitter module - receiving module - measuring cycles for workpiece measurement for milling - Siemens measuring cycles

x-travel 630 mm︱y-travel 550 mm︱z-travel 550 mm︱control Professional L Makino︱Main spindle: ︱turning speed range - main spindle 50 - 16.000 min/-1︱power capacity - main spindel 15 / 11 kW︱max. Torque 29 Nm︱tool taper HSK-A50 / 63 ︱threading 5.000 ︱work table: ︱table diameter 400 mm︱max. table load 400 kg︱max. workpiecediameter 710 mm︱max. workpiece height 580 mm︱Tool-Presetter: ︱number of toolpositions 26 ( 22 / 4 ) pos.︱tool taper HSK-A50 / 63 ︱max. tool diameter 100 / (125) mm︱max. tool length 310 mm︱

---

CNC-MachiningCenter Horizontal MAKINO - J 3-3 - 3 Axis - young, good-condition Machine - few operating-hours

x-travel 700 mm︱y-travel 700 mm︱z-travel 700 mm︱Control Siemens 840 D ︱total power requirement 57 kVA︱weight of the machine ca. 9,7 t︱dimensions of the machine ca. m︱

---

3-D control: Siemens 840 D Solutionline Main drive: motor spindle: 12000 rpm Power: 20 kW Tool holder: HSK-A 63 according to DIN 6983 Tool changer: 80 magazine locations / double gripper NC rotary table with pallet carrier Rotary pallet changer: 2 pallets 500 x 500 mm with T-slots DIN 55201-A2 Tool identification 4-color signal lamp Production package: coolant system 980 liters, paper belt filter IKZ 40 bar / 23 l / min. through the spindle center (AD), roof flush Working space 300 l / min. Rotating lens Flushing gun with pump 2 bar / 40 l / min. Oil and emulsion mist separation system Electronic handwheel Siemens 840 D Siemens control panel for loading station. Tool magazine with TFT screen Direct linear measuring system in X, Y, Z-axis Dynamics package DMG MORI Netservice - on board

x-travel 1000 mm︱y-travel 900 mm︱z-travel 1000 mm︱control OSP P 200 M ︱spindle turning speed range 6000 U/min︱tool taper BT 50 BigPlus ︱spindle motor 30 / 22 kW︱toolpiece magazine: chain magazine 60 Stück︱table-size 630 x 630 mm︱table rotation 360 x 1 °︱table load 1,2 t︱total power requirement 90 kW︱weight of the machine ca. 26 t︱dimensions of the machine ca. 6 x 4,3 x 3,3 m︱

---

- CNC-ontrol OSP P 200 M (4-Axis) - 2-fold Pallet (630x630mm) - Chip Conveyor - ATC 60-fold (BT 50 BigPlus) - 4th axis at 1/1000th of a degree. - Chip conveyor CONCEPT 2000 (drum filter) - Exhauster approx 58000h power on and 26700h Spindle Hours

x-travel 640 mm︱y-travel 610 mm︱z-travel 680 mm︱spindle taper: BT Big Plus 40︱size of pallet 400x400 mm︱rapid travel range 60.000 m/min︱workpiece weight max. 500 kg︱spindle turning speed range 40-15000 U/min︱total power requirement 15 kW︱weight of the machine ca. 11,7 t︱required space 5,4x3,9x2,6 m︱

---

The machine can still be viewed under power and, according to our assessment, is in a technically excellent condition! The tools and clamping devices are not included in the scope of delivery. The machine is equipped with: IKZ 3-D probe B-axis Degree of indexation 0.001 ° Chip conveyor Tool changer, 80 places *** Changes and errors in the technical data and information, as well Subject to prior sale! ***

Control Okuma OSP-P200M ︱Pallet table size 500x500 mm︱Number of pallets 2 x︱Table load 750 kg︱Movement X-axis 700 mm︱Movement Y-axis 900 mm︱Movement Z-axis 780 mm︱Table indexing 0,001 °︱Spindle taper ISO 50 ︱Spindle Speed 6.000 1/min︱Spindle motor 30/22 kW︱Magazin capacity 60 ︱Width 3080 mm︱Length 5970 mm︱Height 3282 mm︱Weight 25900 kg︱

---

x-travel 630 mm︱y-travel 630 mm︱z-travel 630 mm︱Control SIEMENS 840D sl ︱tool taper HSK A63 ︱turning speeds 16.000 U/min︱total power requirement - kW︱weight of the machine ca. ca. 12,0 t︱dimensions of the machine ca. m︱

---

x-travel 2500 mm︱y-travel 1600 mm︱z-travel 800 mm︱w-axis 500 mm︱control Siemens 840 D ︱spindle taper ISO HSK A 63 / A 100 ︱spindle turning speed range 4000 / 18000 U/min︱spindle motor 30 / 35 kW︱feeds 1- 30000 mm/min︱Table dimensions 2000 x 2000 mm︱table load capacity 25000 kg︱tool piece magazine with 60 pieces︱A-Axis +90 / -120 °︱b-axis 360 °︱c-axis +/- 180 °︱total power requirement 60 kW︱weight of the machine ca. 63 t︱dimensions of the machine ca. 10,8 x 7,5 x 5,5 m︱

---

Horizontal moving column machining centre equipped with: - CNC control Siemens 840 D (7-axes controlled) - Siemens Simatic S 611 D - Tool changer 60-fold HSK A 100 - Chip conveyor - Coolant system with IKZ (2 MPa) - Rotary Table 2000x2000mm - 25t - 4 interchangeable heads: -- spindle head "VKE" (18000 rpm - 25/35 KW - HSK A 63) -- spindle head "VA1" (4000 rpm- 30 KW - HSK A 100) -- spindle head "VK" (4000 rpm- 30 KW - HSK A 100) -- spindle head "VO" (4000 rpm- 30 KW - HSK A 100)

x-travel 1350 mm︱y-travel 970 mm︱z-travel 1300 mm︱Control Sinumerik 840D ︱feeds x/y/z -stepless 1 - 60000 mm/min︱rapid travel x/y/z 60 m/min︱2 rectancular pallets 800 x 1000 mm ︱working spindle ︱tool taper SK 50 ︱main drive capacity (25% ED) 67 kW︱main drive capacity (25% ED) 37 kW︱torque (25% ED) 1508 Nm︱torque (100% ED) 1194 Nm︱speed only with the horizontal working spindle 6000 U/min︱weight of the machine ca. 25 t︱

---

Equipment / Accessories: - tower magazine with 120 storage places in 2 towers - max. tool diameter (with free adjacent places) 250 mm - max. tool diameter (with occupied adjacent spaces) 110 mm - max. tool length 800 mm - max. projection length 450 mm - max. total weight of all tools per tower 600 kg - coolant aggregate fleece gravity filter - process lubrication through the center of spindle in 7 stages upto 50 bar - emission extraction work area - Visiport electrical, rotating window in the work area protection door - RENISHAW OMP60 optical probe - warm-up program - spindle extension by 100 mm

x-travel 750 mm︱y-travel 850 mm︱z-travel 600 mm︱Control S 840 D ︱rapid travel x/y/z 50/50/70 m/min︱spindle turning speed - stepless 30 - 10000 U/min︱tool taper 80 HSK︱weight of tools max. 15 kg︱tool length - max. 400 mm︱tension force 20 kN︱tool diameter 120 (200) mm︱table-size 1600 x 650 mm︱distance between milling spindels 750 mm︱total power requirement 95 kVA︱weight of the machine ca. 27 t︱dimensions of the machine ca. 5 x 3 x 3 m︱

---

Horizontal machining center with 2 spindles and swivable table for a four axes machining. Machine was used for machining of cylinder heads in the automotive Industry (8 cylinder motors). Machine has two automatic tool changing magazins with each 50 places. Control: Siemens 840 D Additional technical data: A- axes swivel positioning +/- 5 arc seconds. Chip to chip time is up to a tool weight of 4 kg = 4,5 sec. and 5 - 15 kg = 7 sec.

x-travel 750 mm︱y-travel 850 mm︱z-travel 600 mm︱Control S 840 D ︱rapid travel x/y/z 50/50/70 m/min︱spindle turning speed - stepless 30 - 10000 U/min︱tool taper 80 HSK︱weight of tools max. 15 kg︱tool length - max. 400 mm︱tension force 20 kN︱tool diameter 120 (200) mm︱table-size 1600 x 650 mm︱distance between milling spindels 750 mm︱total power requirement 95 kVA︱weight of the machine ca. 27 t︱dimensions of the machine ca. 5 x 3 x 3 m︱

---

Horizontal machining center with 2 spindles and swivable table for a four axes machining. Machine was used for machining of cylinder heads in the automotive Industry (8 cylinder motors). Machine has two automatic tool changing magazins with each 50 places. Control: Siemens 840 D Additional technical data: A- axes swivel positioning +/- 5 arc seconds. Chip to chip time is up to a tool weight of 4 kg = 4,5 sec. and 5 - 15 kg = 7 sec.

x-travel 750 mm︱y-travel 850 mm︱z-travel 600 mm︱Control S 840 D ︱rapid travel x/y/z 50/50/70 m/min︱spindle turning speed - stepless 30 - 10000 U/min︱tool taper 80 HSK︱weight of tools max. 15 kg︱tool length - max. 400 mm︱tension force 20 kN︱tool diameter 120 (200) mm︱table-size 1600 x 650 mm︱distance between milling spindels 750 mm︱total power requirement 95 kVA︱weight of the machine ca. 27 t︱dimensions of the machine ca. 5 x 3 x 3 m︱

---

Horizontal machining center with 2 spindles and swivable table for a four axes machining. Machine was used for machining of cylinder heads in the automotive Industry (8 cylinder motors). Machine has two automatic tool changing magazins with each 50 places. Control: Siemens 840 D Additional technical data: A- axes swivel positioning +/- 5 arc seconds. Chip to chip time is up to a tool weight of 4 kg = 4,5 sec. and 5 - 15 kg = 7 sec.

x-travel 730 mm︱y-travel 730 mm︱z-travel 740 mm︱control Mazatrol MATRIX Nexus ︱numbers of pallets 2 ︱size of pallet 500 x 500 mm︱max. workpiece height 1000 mm︱max. workpiecediameter 800 mm︱turning speed range - milling 12.000 U/min︱tool taper ISO 40 ︱Tool changer 40 pos.︱power capacity - milling spindle 26 kW︱b-axis (table) 360000 x 1 °︱workpiece weight 500 kg︱feed 0 - 50 m/min︱weight of the machine ca. 11 t︱dimensions of the machine ca. 4,9 x 2,45 x 2,85 m︱

---

equipped with: - CNC control MAZATROL MATRIX Nexus - 2 pallets 500 x 500mm - tool changer 40-fold (ISO 40) - chip conveyor - IKZ 10bar - Tool length measuring device and tool breakage monitoring system

x-travel 1400 mm︱y-travel 1200 mm︱z-travel 1350 mm︱Control FANUC MSX 710︱numbers of pallets 2x ︱size of pallet 800x800 mm︱table load 3 t︱feed 5000 mm/min︱rapid traverse 5000 mm/min︱turning speeds 10000 U/min︱Drive 30 kW︱tool taper SK 50 ︱tool change unit 180-fach ︱weight of the machine ca. 25 t︱dimensions of the machine ca. 7x7x3,5 m︱

---

complete 4th axis
